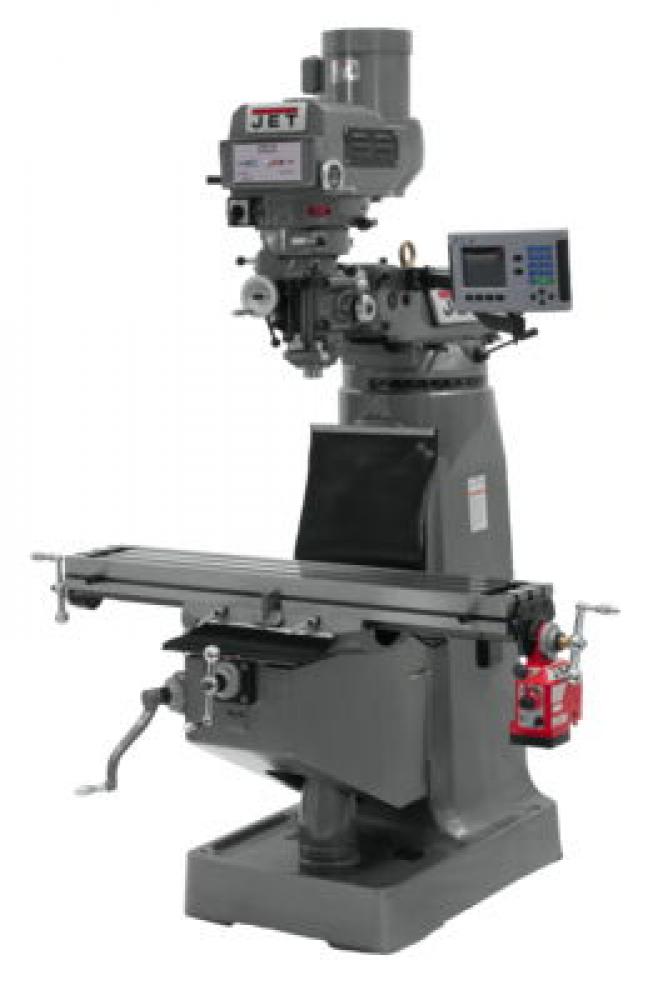

JTM-4VS MILL W/203 3 AX W/TPFA-2X (TEXT) by Jet - US

Call For Price

Part Number: JT9-690221
UPC:
Availability: Item is usually in stock, but we'll be in touch if there's a problem

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

Constructed using the Certified Meehanite® casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading Two Year full service and parts Warranty.

Specifications

Details

Industrial Category:

Machining

Industrial Subcategory:

Milling

Base Unit of Measure:

BOM Products:

JT9-350194,JT9-690182,JT9-M203-133504J

Collet Capacity:

1/8 - 7/8

Distance Spindle to Column (Max.) (In.):

Enabled:

Yes

End User Sellable:

Family:

Vises - Milling

Item Display Order:

Item Weight (lbs):

2240

Magento Website Mapping:

JET Parts

Max Distance Spindle to Table (In.):

17-1/2

Model Number:

JTM-4VS

Motor (HP):

3 HP, 230/460V, 3Ph

Number of Axis:

3 (Quill)

Old Item Number:

690221

Overall Dimensions (L x W / in.):

66 x 63 x 85

Powerfeed:

X-Axis

Prop 65:

View

Quill Diameter (In.):

3-3/8

Quill Down Feed Rates (IPR):

.0015 - .003 - .006

Range of Spindle Speeds (RPM):

60 - 4,200

Ready for Web:

Yes

Spindle Taper (In. x TPI):

R-8

Spindle Travel (In.):

Style (Type):

Variable Speed R8

T-Slot Centers (In.):

2-1/2

Table Cross Travel (In.):

Table Longitudinal Travel (In.):

Table Longitudinal Travel With Powerfeed (In.):

28-3/4

Table Size (L x W) (In.):

9 x 49

Transportation:

DOCK DEL ONLY

Travel of Knee (In.):

14-1/2

Travel of Ram (In.):

13-3/8

UPC:

662755516405

Weight (Lbs.):

2420

Weight (Lbs.) (Unit):

Pound

Work Table Weight Capacity (Lbs.):

660

Manufactured By:

Jet - US

Other Details

Adjustable gibs throughout

Heavy duty splined motor drive

Internal coolant tank built into casting base for use with coolant system (Coolant pump not included)

Large diameter quill is chromed

One shot lubrication system

Precision hardened and ground ways and table

Spindle head is internally cooled

Tolerance test sheet included
