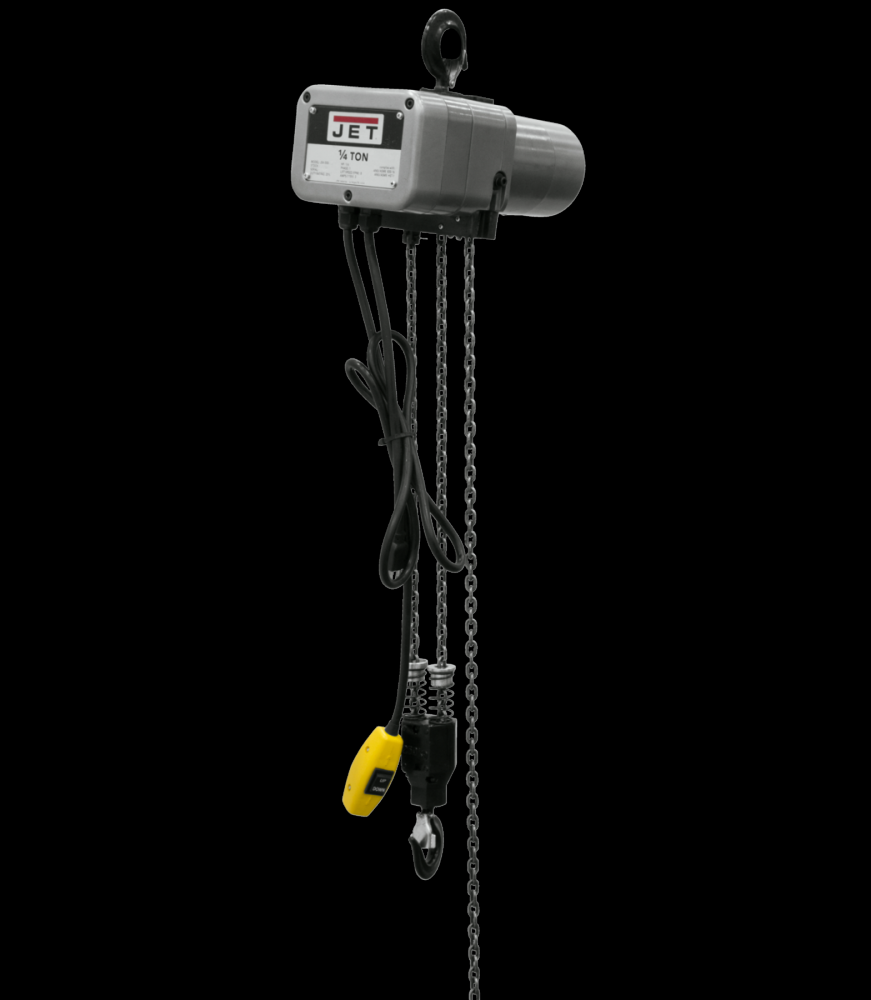

JSH-550-20 1/4T ELEC HST 20' LIFT 1PH

JSH-550-20 1/4T ELEC HST 20' LIFT 1PH by Jet - US

Call For Price
  • Part Number: 110520
  • UPC: 00662755100932
  • Availability: Item is usually in stock, but we'll be in touch if there's a problem
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
JET® JSH Series Electric Hoists combines safety, durability and portability to operate in light duty commercial and industrial applications. The die cast Aluminum housing keeps the hoist lightweight and easily portable. All models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. They have a built-in thermal overload protection system that keeps the hoist from overheating. The industry proven magnetic disk brake increases safety by ensuring rapid stops and securing the load. The maintenance-free gear train incorporates a sealed oil bath, eliminating maintenance. The JET® JSH Series Electric Hoist is available in 1/8-Ton and 1/4-Ton capacities with standard lifts of 10, 15, and 20 feet (custom lifts available).
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Hoists and Trolleys
Capacity (Lbs.):
500
Capacity (Lbs.) (Unit):
Pound
Configurable Base Item:
No
Country of Origin:
China
Duty Cycle (%):
25
Duty Cycle Rating:
H3
Headroom (In.) - TS_14:
17-1/10
Item Height (inches):
11.4
Item Length (inches):
14.6
Item Weight (lbs):
44
Item Width (inches):
10.8
Lift (Ft.):
20
Lift (Ft.) (Unit):
Feet
Lifting Speed (FPM):
8
Load Capacity (Tons):
4-Jan
Load Chain Dimensions dia/mm):
4 x 12
Max. Number of Starts (Per Hr.):
150
Max. On Time (Min. / Hr.):
15
Motor (HP):
1/6 HP, 115V, 1 Ph
Motor Current (Amps):
3
Motor Phase:
1
Motor Voltage (V.):
115
Overall Width (In.):
8.61
Overload Protection:
Yes
Prop 65:
View
Warranty:
2 Year
Manufactured By:
Jet - US
Other Details
Aluminum Housing- Aluminum alloy housing decreases the weight for convenient transportation
Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability
Heat Treated Gears- Heat treated alloy steel geared drive train for long lasting durability
JET VOLT and SSC Series Electric Hoists and JET ET Series Electric Trolleys are not rated or designed for outdoor use or wet environments
Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling
