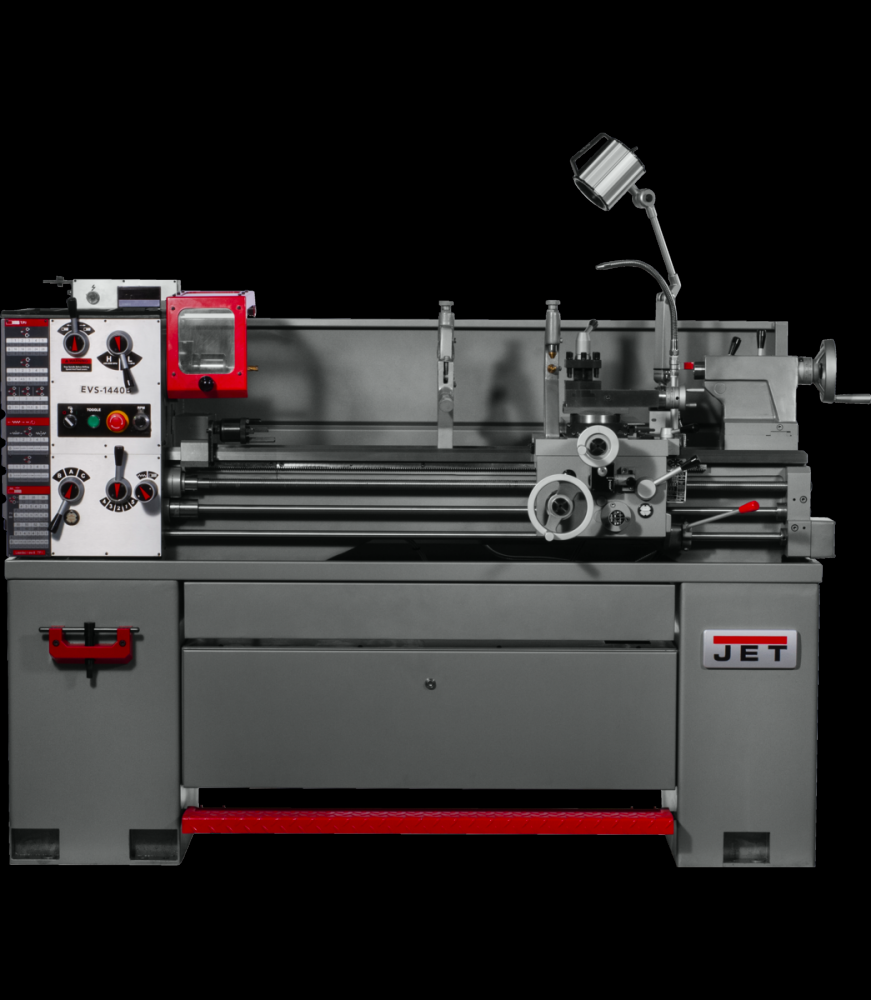

EVS-1440B EVS LATHE W DP700

EVS-1440B EVS LATHE W DP700 by Jet - US

Call For Price
  • Part Number: 311448
  • UPC: 00731325792010
  • Availability: Item is usually in stock, but we'll be in touch if there's a problem
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
The EVS-1440B is engineered to maximize your shop’s output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004’’. The spindle also features an apron-mounted actuation control and jog button for easy gear engagement and spindle inching. The two-speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM, and at high speeds from 220 to 2,000 RPM. Additionally, the tailstock may be offset for turning taper. Meehanite castings retain their tolerance and remain rigid over many years of machining.
Specifications
Details
Industrial Category:
Machining
Industrial Subcategory:
Machine Tool Accessories
BOM Products:
311440,J632DP700L
Compound Slide Travel (In.):
3/1/2002
Configurable Base Item:
No
Country of Origin:
Taiwan
Cross Slide Travel (In.):
7
Cross Slide Travel (In.) (Unit):
Inch
Gross Weight (Lbs):
1584
Gross Weight (Lbs) (Unit):
Pound
Item Height (inches):
50
Item Length (inches):
68.5
Item Weight (lbs):
1584
Item Width (inches):
28.3
Length of Gap (In.):
9/1/2002
Max Tool Size (In.):
3/4 x 3/4
Motor (HP):
3HP, 230V, 3Ph
Net Weight (Lbs.):
1320
Net Weight (Lbs.) (Unit):
Pound
Number of Inch Threads:
34
Number of Longitudinal and Cross Feed Rates:
25
Number of Metric Threads:
34
Overall Dimensions (L x W x H) (In.):
68.5 x 28.3 x 50
Prop 65:
View
Range of Inch Threads (TPI):
Feb-56
Range of Longitudinal Feeds (IPR):
0.0016-0.0460
Range of Metric Threads:
0.5-12
Range of Spindle Speeds (RPM):
40-2000
Spindle Bore (In.):
1/1/2002
Spindle Mount:
D1-4
Spindle Taper with Sleeve:
MT-5
Steady Rest Capacity (In.):
0.23-0.61 Copper Shaft ( Standard) 0.20-2.36 Bearing Roller(OP)
Swing Over Bed (In.):
14
Swing Over Cross Slide (In.):
9/1/2016
Tailstock Spindle Travel (In.):
6/1/2008
Taper in Tailstock Spindle:
MT-3
Warranty:
2 Year
Width of Bed (In.):
7.48
Manufactured By:
Jet - US
Other Details
Compound and cross slide have backlash elimination
Electronic Chuck Key Docking Station
Front Removable Chip Tray
Full Length Splash Guard
Independent lead screw and feed rod
Integrated locking tool storage cabinet in the stand
LED RPM readout allows for precise turning speeds
Safety on/off switch
Treading Dial Indicator
V-way bed design is induction hardened and ground
