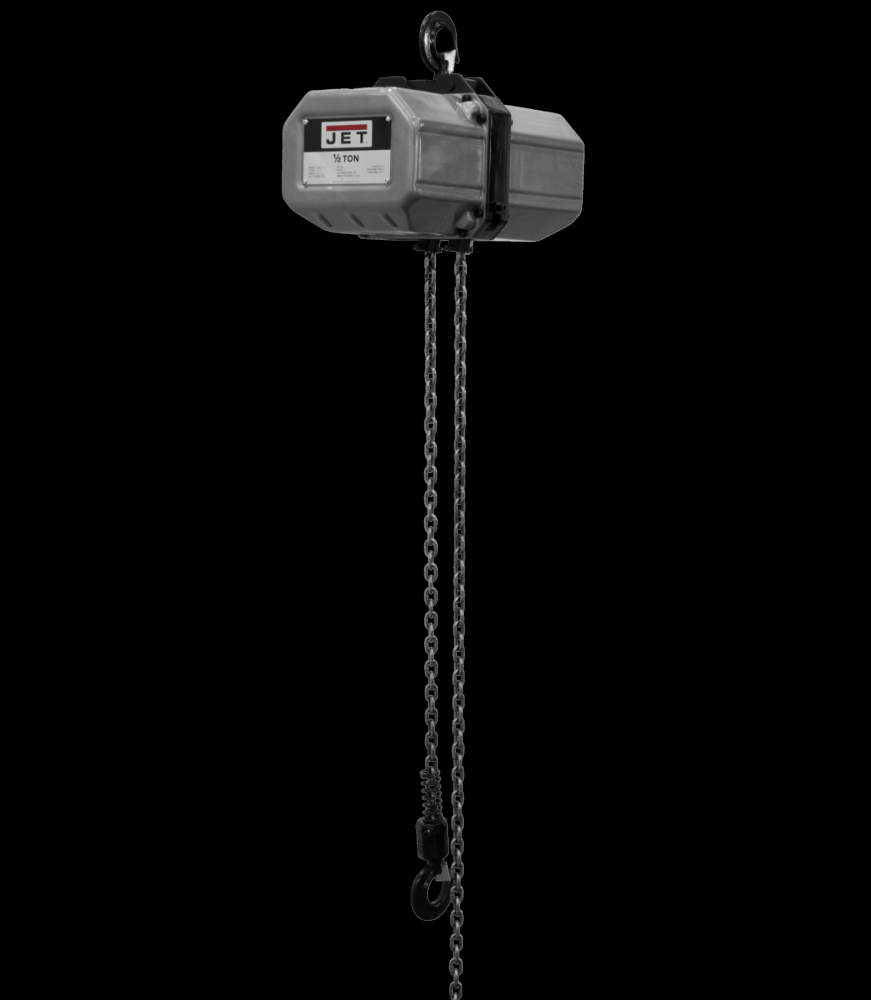

1/2SS-1C-15 1/2T ELEC HST 15' LIFT 1PH

1/2SS-1C-15 1/2T ELEC HST 15' LIFT 1PH by Jet - US

Call For Price
  • Part Number: 121150
  • UPC: 00662755906138
  • Availability: Item is usually in stock, but we'll be in touch if there's a problem
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
JET® SSC Series Electric Hoists combines safety and durability to operate in commercial and industrial applications. All models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. They are available in single or three phase configurations to suit your electrical needs. Single phase models have a thermal overload protection design that keeps the hoist from overheating, while the three phase models feature a reverse phase relay that protects the hoist from incorrect wiring. The industry proven DC electro-magnetic brake increases safety by holding the load even when power is interrupted. The maintenance-free gear train incorporates a sealed oil bath, for reliability and durability. The JET® SSC Series Electric Hoist is available in 1/2-Ton to 5-Ton capacities with standard lifts of 10, 15, and 20 feet (custom lifts available).
Specifications
Details
Industrial Category:
Material Handling
Industrial Subcategory:
Hoists and Trolleys
Capacity (Lbs.):
1000
Capacity (Lbs.) (Unit):
Pound
Configurable Base Item:
No
Country of Origin:
China
Duty Cycle (%):
25
Duty Cycle Rating:
H3
Headroom (In.) - TS_14:
20-3/16
Item Height (inches):
15.35
Item Length (inches):
20.87
Item Weight (lbs):
123
Item Width (inches):
16.14
Lift (Ft.):
15
Lift (Ft.) (Unit):
Feet
Lifting Speed (FPM):
19
Load Capacity (Tons):
2-Jan
Load Chain Dimensions dia/mm):
6.3 x 19
Max. Number of Starts (Per Hr.):
150
Max. On Time (Min. / Hr.):
15
Motor (HP):
7/8 HP, 115 / 230V, 1 Ph
Motor Current (Amps):
8
Motor Phase:
1
Overall Width (In.):
10.24
Overload Protection:
Yes
Prop 65:
View
Warranty:
2 Year
Manufactured By:
Jet - US
Other Details
24 volt push button controller with cable strain relief system for durability and reliability
All steel construction
Durable powder coat finish
Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability
Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling
NEMA 4X compliant push button control pendants
Sealed Gear Train- Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep
Thermal overload protection
